Model: ICR18650H2-3S3P
Voltage:11.1V
Capacity:7800mAh
Feature:
● Cell balance and Long cycle life over 300 times
● SMBus communication function
● High energy density, Wide operation temperature，no memory effect
● Environmental friendly and Compliant to CE, RoHS Certification
|
Capacity |
Nominal Capacity: 7800mAh (0.2CDischarge) Minimum Capacity: 7500mAh (0.2CDischarge) |
|
Nominal Voltage |
11.1V |
|
Charge Cut-off Voltage |
12.6V |
|
Discharge Cut-off Voltage |
9.0V |
|
Internal Impedance |
≤250mΩ |
|
Standard Charge Current |
0.2C |
|
Standard Discharge Current |
0.2C |
|
Max. Charge Current |
0.2C（0℃～15℃） |
|
0.5C (15℃～45℃) |
|
|
Max. Continuous Discharge Current |
3A |
|
General cycle Life(25±2℃) |
300times |
|
Operating Temperature |
Charge: 0 ~45℃ Discharge: -20 ~60℃ |
|
Storage Temperature |
During 3 month: -20 ~ 45℃ During 1 year: -20 ~ 28℃ |
|
Weight |
Appro. 425g |
|
Terminal /Connector |
Soldering tabs/wires/connectors (any special connector, please don't hesitate to contact us.) |
|
Battery Pack Dimension |
Thickness: 20mm Width: 171mm Height:68mm |

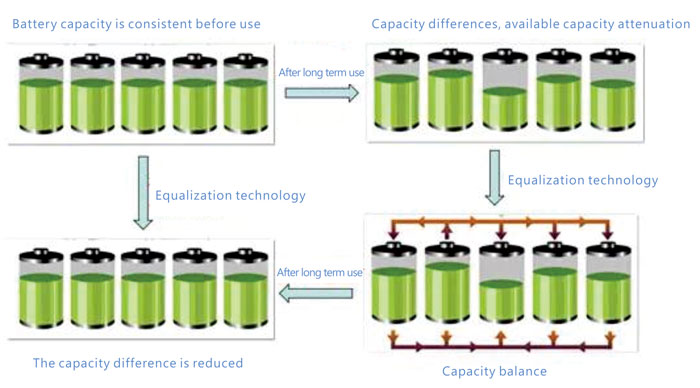

Cell Balance
The meaning of battery balance is to keep the expected battery deviation by adopting the power electronics technology, so as to ensure that each single battery maintain the same state in the normal usage, prevent the battery from over-charge, over-current.

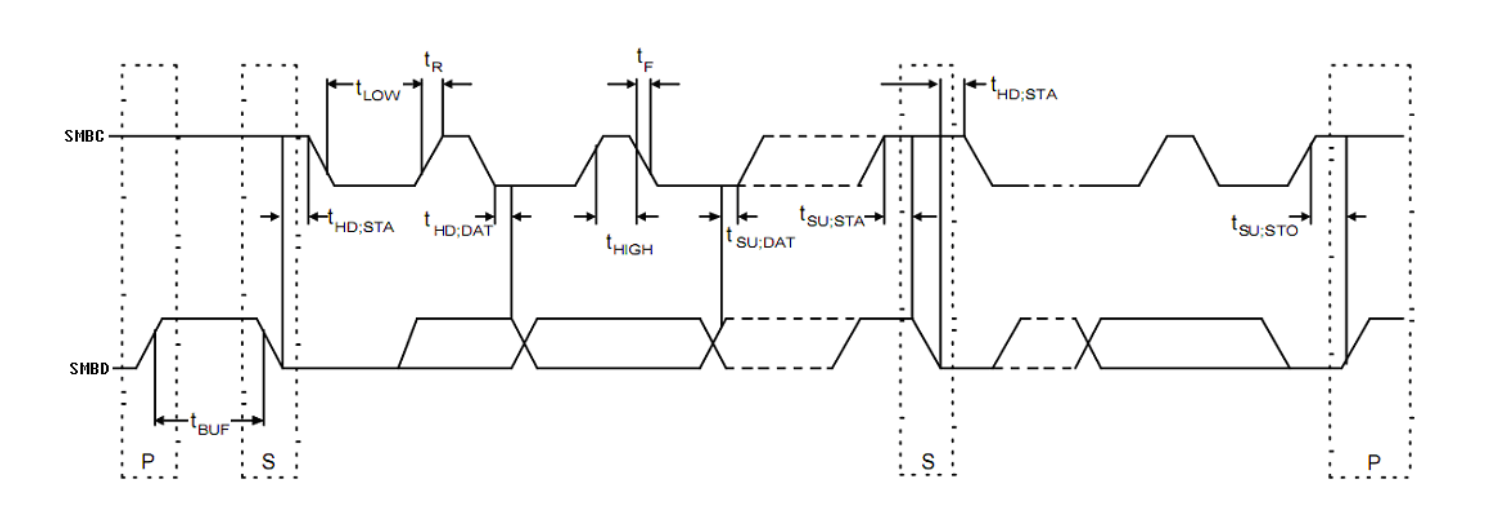

SMBus Communication Function

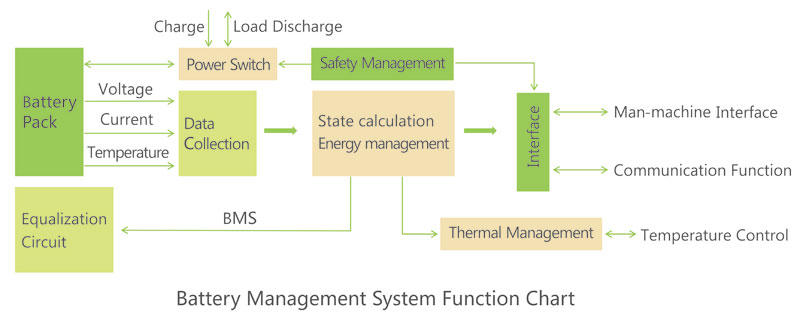

Intelligent management systems mainly perform communication function, to read the conversion data and status information, and to control the smart battery management system based on main unit demands. The System Management Bus (SMBus) is two-wire interfaces, which make sure the mutual communicate among the equipment and the equipment and other parts of the system.
