C74-100B

24V 10Ah Smart Lithium Battery

Parameter
Download

Specification

Battery Type	Li-ion 18650 battery
Battery Configuration	7S4P
Nominal Voltage	25.2V
Nominal Capacity	10Ah
Discharge Cut-off Voltage	19.25V
Max. Charge Voltage	29.4V
Charge Current	2~5A
Charge Method	CC/CV
Standard Continuous Discharge Current	0.2C (C: Nominal Capacity )
Max. Continuous Discharge Current	20A
Pulse Discharge Current	30A (60s) 40A (10s)
Short Circuit Protection	YES
Operating Temperature ( discharge )	-20℃ to + 60℃
Operating Temperature ( charge )	0℃ to + 40℃
Storage Temperature	15℃ to + 25℃ (recommend)
Cycle Life	2000 times
Cell Balancing Current	40mA
Sleep Mode	No bluetooth connecting , operating current less than 200mA (20s) *only for C74-100B
Charge Temperature Protection	50℃
Discharge Temperature Protection	65℃
Bluetooth	4.0 version (only for C74-100B)

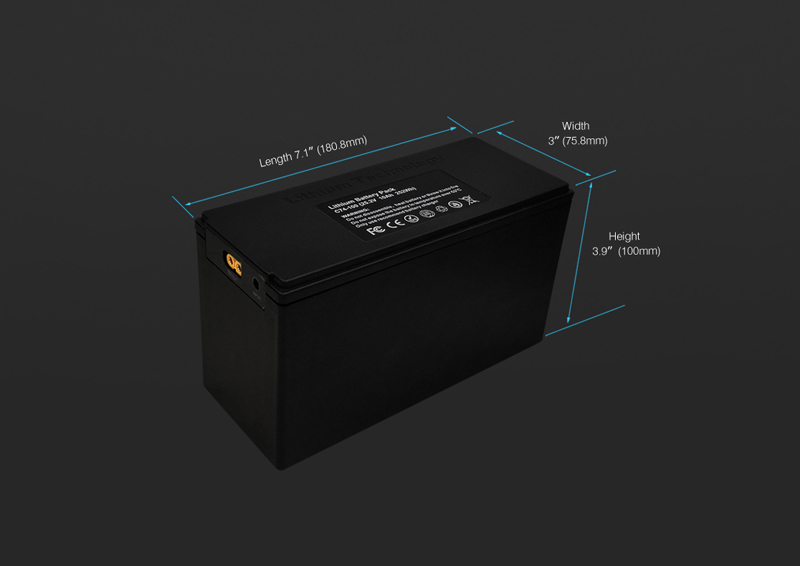

Dimension	180.8 x 75.8 x 100mm (7.1'' x 3'' x 3.9'')
Certificates	Cell: UL1642 Battery pack: CB, CE, RoHS, UN38.3, FCC

* Nominal Capacity: 0.2C, 25℃, cut-off voltage 19.25V

Key Features

l Facilitated with the function of Bluetooth APP

Through connecting to Android or IOS APP, you can read remaining capacity, operating voltage, current, temperature, protection information of the

battery, as well as the status of internal cell

l High energy density & better performance

With higher capacity, good rate discharge performance, which can adapt to the large current discharge occasion

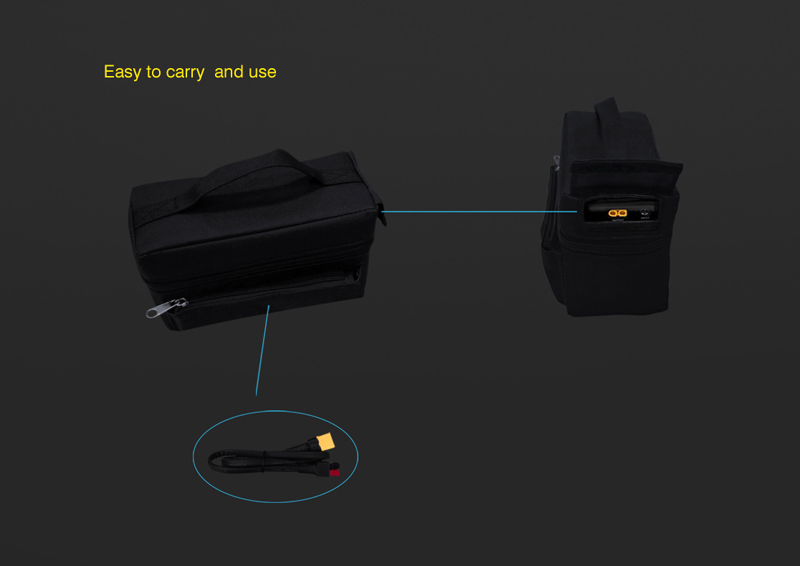

l Super lightweight and more compact, easy to carry

Lithium battery is over 65% lighter than the equivalent lead -acid battery, and significantly smaller than the lead-acid equivalent

l 1000 times cycles life

No memory effect, an integrated battery management system (BMS) protects the high-quality components used and provides a significantly longer

lifespan than the Lead-acid equivalent

l With BMS system

Counter for protection events, cell balancing counter, record battery status, and over-charge/discharge, over-current, short-circuit, over temperature

multiple protections

l Wide operating temperature range

Available for use when the temperature ranges from -20℃ to 60℃

l Lower cost per round

Not only does the increased lifespan reduce replacement battery costs, but the more efficient technology utilizes less power and costs less to

charge

l 2 Year Warranty

Buy with confidence thanks to a market-leading 2-year comprehensive warranty ( 1-year with lead-acid batteries)

l Safety & environmentally friendly

Will not catch fire or explode if damaged, without any hazardous and noxious substances, no pollution to the environment

Details
