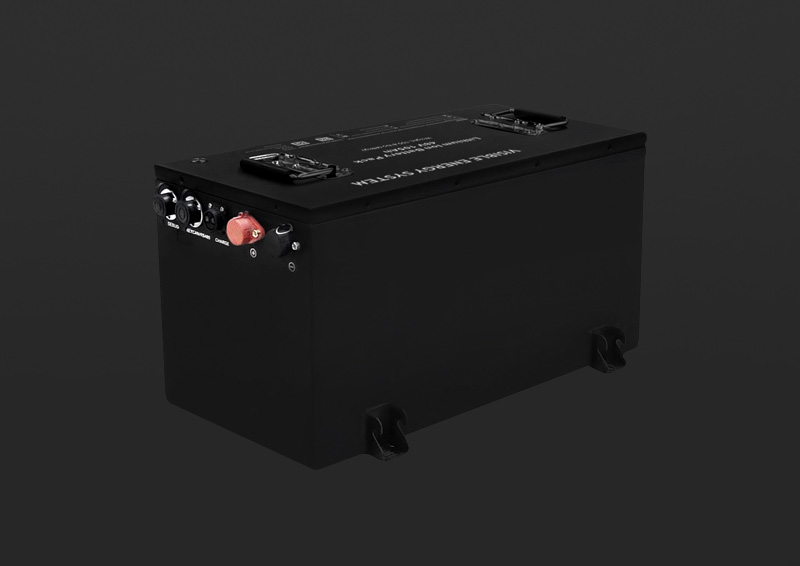

Smart Lithium ion battery pack 48V 105Ah
Specification
| Battery Type |
LiFePO4 battery |
|
Nominal Voltage |
48V |
|
Nominal Capacity |
105Ah |
|
Discharge Cut-off Voltage |
37.5V |
|
Max. Charge Voltage |
54.75V |
|
Charge Method |
CC/CV |
|
Standard Continuous Discharge Current |
0.2C ( 21A ) |
| Max. Continuous Discharge Current | 105A |
|
Pulse Discharge Current |
300A(10S) |
|
Short Circuit Protection |
YES |
|
Operating Temperature ( discharge ) |
-20℃~55℃ |
| Operating Temperature ( charge ) |
0℃~45℃ |
| Storage Temperature (< 1 month) | -20℃~40℃ |
| Storage Temperature (< 6 month) | 0℃~30℃ |
| Cycle Life | >2500 times |
| Communication | CAN / RS485 |
|
BMS Protections |
Cell-Level voltage, Temperature, Over Voltage, Under Voltage,Over-current |
| Dimension | 460 x 310 x 250mm (18.1'' x 12.2'' x 9.8'') |
|
Weight |
48kg (105.8 lbs) |
Features
· High compacted and super light weight, 1/3 smaller and 2/3 lighter than lead-acid battery
· Built-in intelligent BMS, with battery over-voltage, over-current, temperature, short circuit protections
· Visible battery information of SOC, SOH, voltage, current, temperature
· Support remote diagnosis
· Good rate discharge performance
· Communication: CAN/RS485
· Battery fault diagnosis
· Battery fault diagnosis tool is optional
· More than 2500 times long cycle life
Details
Android APP: http://www.dt-energy.com/public/upload/app/app_SmartBattery.apk
IOS APP: https://apps.apple.com/cn/app/dt-smart-battery/id1446858822
