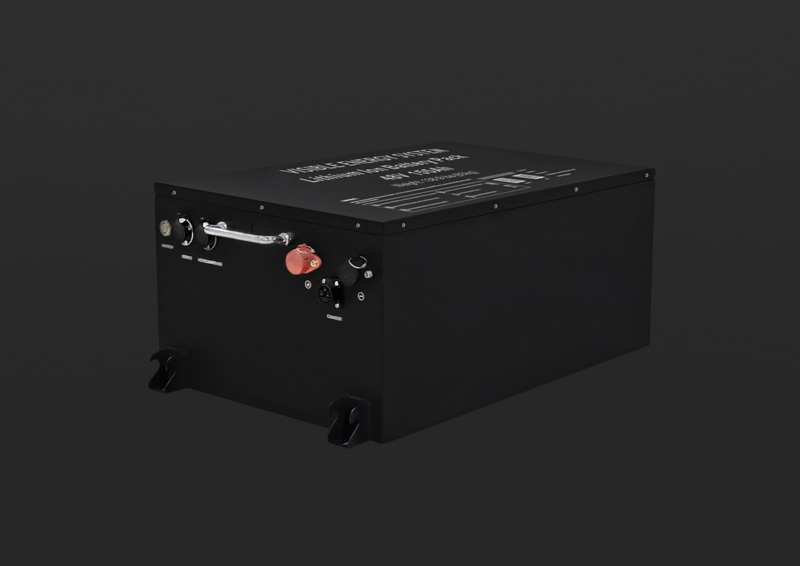

Smart Lithium ion battery pack 48V 155Ah
Visible advance integrated lithium ion battery pack (LiFePo4) with intelligent built-in advance BMS patented technology. Multiple protection of voltage, current, temperature, short circuit to provide customers a ease-minded power supply.
Green Energy Visible lithium ion battery facilitated with mobile APP, customers can live check battery status at anytime. Remote diagnosis is helpful to find out reasons if there were problem occur.
Higher density, smaller size, lighter weight, reliable performance battery is good choice for golf cart, low speed vehicle, electric utility cars, floor cleaning machines.
Specification
| Battery Type |
LiFePO4 battery |
|
Nominal Voltage |
48V |
|
Nominal Capacity |
155Ah |
|
Discharge Cut-off Voltage |
37.5V |
|
Max. Charge Voltage |
54.75V |
|
Charge Method |
CC/CV |
|
Standard Continuous Discharge Current |
0.2C ( 31A ) |
| Max. Continuous Discharge Current | 105A |
|
Pulse Discharge Current |
500A |
|
Short Circuit Protection |
YES |
|
Operating Temperature ( discharge ) |
-20℃~55℃ |
| Operating Temperature ( charge ) |
0℃~45℃ |
| Storage Temperature (< 1 month) | -20℃~40℃ |
| Storage Temperature (< 6 month) | 0℃~30℃ |
| Cycle Life | >2500 times |
| Communication | CAN / RS485 |
|
BMS Protections |
Cell-Level voltage, Temperature, Over Voltage, Under Voltage,Over-current |
| Dimension | 510 x 375 x 250mm (20.1'' x 14.8'' x 9.8'') |
|
Weight |
63kg (138.9 lbs) |
· High compacted and super light weight, 1/3 smaller and 2/3 lighter than lead-acid battery
· Built-in intelligent BMS, with battery over-voltage, over-current, temperature, short circuit protections
· Visible battery information of SOC, SOH, voltage, current, temperature
· Support remote diagnosis
· Good rate discharge performance
· Communication: CAN/RS485
· Battery fault diagnosis
· Battery fault diagnosis tool is optional
· More than 2500 times long cycle life
Details
Android APP: http://www.dt-energy.com/public/upload/app/app_SmartBattery.apk
IOS APP: https://apps.apple.com/cn/app/dt-smart-battery/id1446858822
