C48-210

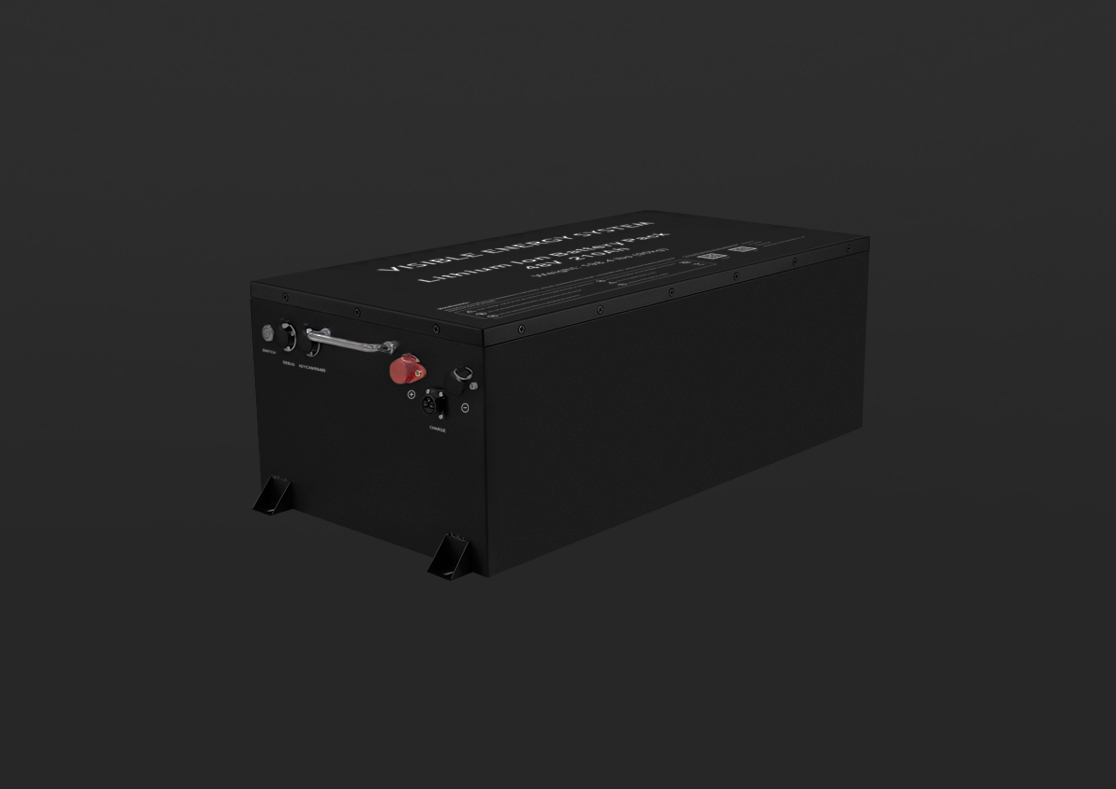

Smart Lithium ion battery pack 48V 210Ah
Visible advance integrated lithium ion battery pack (LiFePo4) with intelligent built-in advance BMS patented technology. Multiple protection of voltage, current, temperature, short circuit to provide customers a ease-minded power supply. Green Energy Visible lithium ion battery facilitated with mobile APP, customers can live check battery status at anytime. Remote diagnosis is helpful to find out reasons if there were problem occur. Higher density, smaller size, lighter weight, reliable performance battery is good choice for golf cart, low speed vehicle, electric utility cars, floor cleaning machines.

  • Parameter
  • Download


Specification


       Battery Type        LiFePO4 battery
       Nominal Voltage
       48V
       Nominal Capacity
       210Ah
       Discharge Cut-off Voltage
       37.5V
       Max. Charge Voltage
       54.75V
       Charge Method
       CC/CV
       Standard Continuous Discharge Current
       0.2C ( 42A )
       Max. Continuous Discharge Current        200A
       Pulse  Discharge Current

       480A(10S)

       Short Circuit Protection
       YES
       Operating Temperature  ( discharge )
       -20℃~40℃
       Operating Temperature  ( charge )        0℃~45℃
       Storage Temperature (<1 month)        -20℃ to +25℃
       Storage Temperature (<6 month)        0℃~30℃

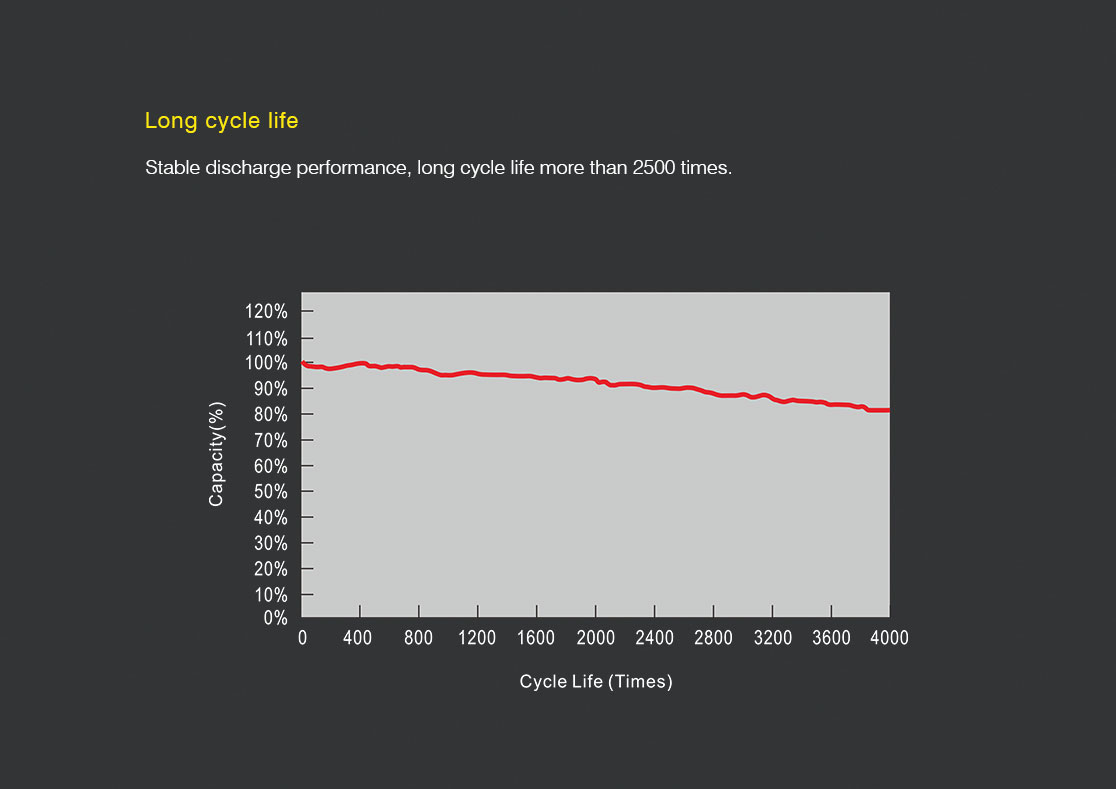

       Cycle Life        >2500 times
       Communication        CAN / RS485
         BMS Protections


         Cell-Level  voltage, Temperature, Over Voltage, Under

         Voltage,Over-current

       Dimension       539 x 454 x 250mm  ( 21.2'' x 17.9'' x 9.8'' )
       Weight

       90kg (198.4 lbs)




·    High compacted and super light weight, 1/3 smaller and 2/3 lighter than lead-acid battery


·    Built-in intelligent BMS, with battery over-voltage, over-current, temperature, short circuit protections


·    Visible battery information of SOC, SOH, voltage, current, temperature


·    Good rate discharge performance


·    Communication: CAN/RS485


·    Battery fault diagnosis


·    Battery fault diagnosis tool is optional


·    More than 2500 times long cycle life



Details























Android APP:   http://www.dt-energy.com/public/upload/app/app_SmartBattery.apk






IOS APP:  https://apps.apple.com/cn/app/dt-smart-battery/id1446858822
