Li-SOCl2 batteries


Feature:
● High energy density and high & stable operation voltage
● Long operation life from 15 years to 20 years
● Extremely low discharge rate less than 2% per year
● Wide operating temperature range -55℃~85℃

  • Parameter
  • Download

Capacity Type Li-SOCl2 Batteries


Model

Size

Nominal
capacity
(mAh)

Nominal voltage
(V)

Operating current
mA(max)

Standard
discharge
Current

Cut off
voltage

Dimension
mm(max)

Weight
(g)

Continuous

Pulse

(mA)

(V)

dia.

H

ER10280

 2/3AAA

450

3.6

10

20

0.5

2.0

10

28

5

ER14250

1/2AA

1200

3.6

50

100

0.5

2.0

14.5

25.5

10

ER14335

2/3AA

1600

3.6

50

100

1.0

2.0

14.5

34

13

ER14505

AA

2600

3.6

100

200

1.0

2.0

14.5

51

20

ER17335

2/3A

2200

3.6

100

200

1.0

2.0

17.5

34

20

ER17505

A

3500

3.6

100

200

1.0

2.0

17.5

51

30

ER18505

A

4100

3.6

100

200

1.0

2.0

18.5

51

32

ER26500

C

8600

3.6

200

400

2.0

2.0

26.2

50

55

ER34615

D

19000

3.6

200

400

1.0

2.0

34.2

61.5

106

ER341270

DD

38000

3.6

450

1000

10

2.0

34.2

127

188



Power Type Li-SOCl2 Batteries


Model

Size

Nominal
capacity
(mAh)

Nominal voltage
(V)

Operating current
mA(max)

Standard
discharge
Current

Cut off
voltage

Dimension
mm(max)

Weight
(g)

Continuous

Pulse

(mA)

(V)

dia.

H

ER14250M

1/2AA

850

3.6

200

400

5.0

2.0

14.5

25.5

10

ER14335M

2/3AA

1350

3.6

200

400

1.0

2.0

14.5

34

13

ER14505M

AA

2200

3.6

400

800

2.0

2.0

14.5

51

19

ER17335M

2/3A

1700

3.6

500

1000

5.0

2.0

17.5

34

25

ER17505M

A

3100

3.6

600

1000

5.0

2.0

17.5

51

30

ER18505M

A

3800

3.6

600

1000

5.0

2.0

18.5

51

32

ER26500M

C

6500

3.6

1000

1500

10

2.0

26.2

50

55

ER34615M

D

13000

3.6

2000

3000

10

2.0

34.2

61.5

107



Lithium thionyl chloride battery cathode is lithium metal (Li), the internal positive electrode active material and electrolyte are thionyl chloride (SOCl2)。 The rated voltage is 3.6V. There are cylindrical and button shape, from 1/2AA to D format, with spiral type for high current and bobbin construction for small current. Lithium thiony chloride cells have a high energy density, partly because of their high nominal voltage of 3.6V. Bobbin type can reach 760Wh/kg, for a capacity of 19Ah at 3.6V in D format. Because self-discharge is extremely low, this kind of cell can support long storage periods and achieve a service life of 10 to 20 years.

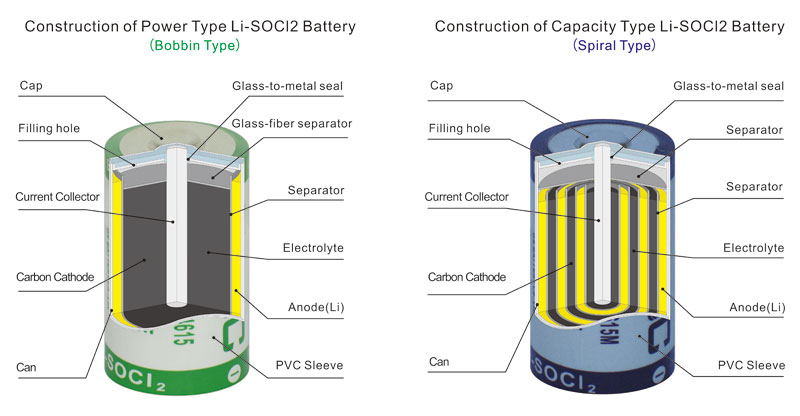

Two type of lithium thionyl chloride cells are available: bobbin and spiral wound construction. Bobbin type cells are particularly well suited for low self-dischargerate, and 10 to 20 years storage life. High capacity, small size, and an ability to with stand broad fluctuations in pressure, Temperature and shock make bobbin type cells ideal for use in remote monitoring applications. However, a growing number of applications

require high current pulses.  Spiral type cells are ideal for high pulse current applications.  In addition,  there are small impedance for spiral type. ( "M" stands for spiral type in our part number)
